Define the ports, protocols, and TLS settings where agentgateway accepts incoming traffic.

Listeners are the entrypoints for traffic into agentgateway. Agentgateway supports both HTTPHTTP (Hypertext Transfer Protocol)The protocol used for transmitting web pages and data over the internet. Agentgateway primarily handles HTTP and HTTPS traffic. and TCPTCP (Transmission Control Protocol)A connection-oriented protocol that provides reliable, ordered delivery of data. Agentgateway supports TCP listeners for non-HTTP traffic. traffic, with and without TLSTLS (Transport Layer Security)A cryptographic protocol that provides secure communication over a network. Agentgateway supports TLS for both incoming connections (listeners) and outgoing connections (backends)..

You configure a listener as part of a gateway. A gateway with a single listener sets the protocol and TLS settings directly, and a gateway that serves multiple hostnames on one port uses the listeners field to define each one. For more information about gateways and how routes attach to them, see Gateways.

HTTP Listeners

An HTTP listener can be configured by setting protocol: HTTP on the gateway. This is also the default protocol if no protocol is specified.

You can add an HTTP listener in the UI or in your configuration file.

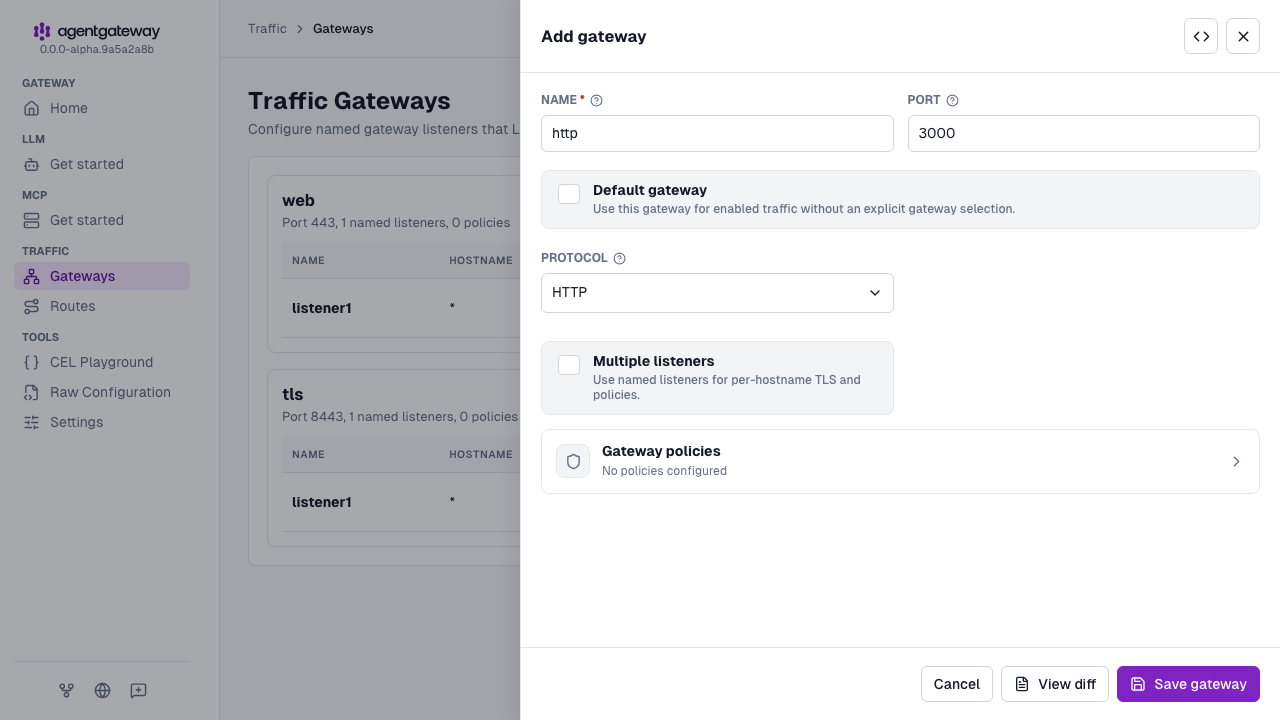

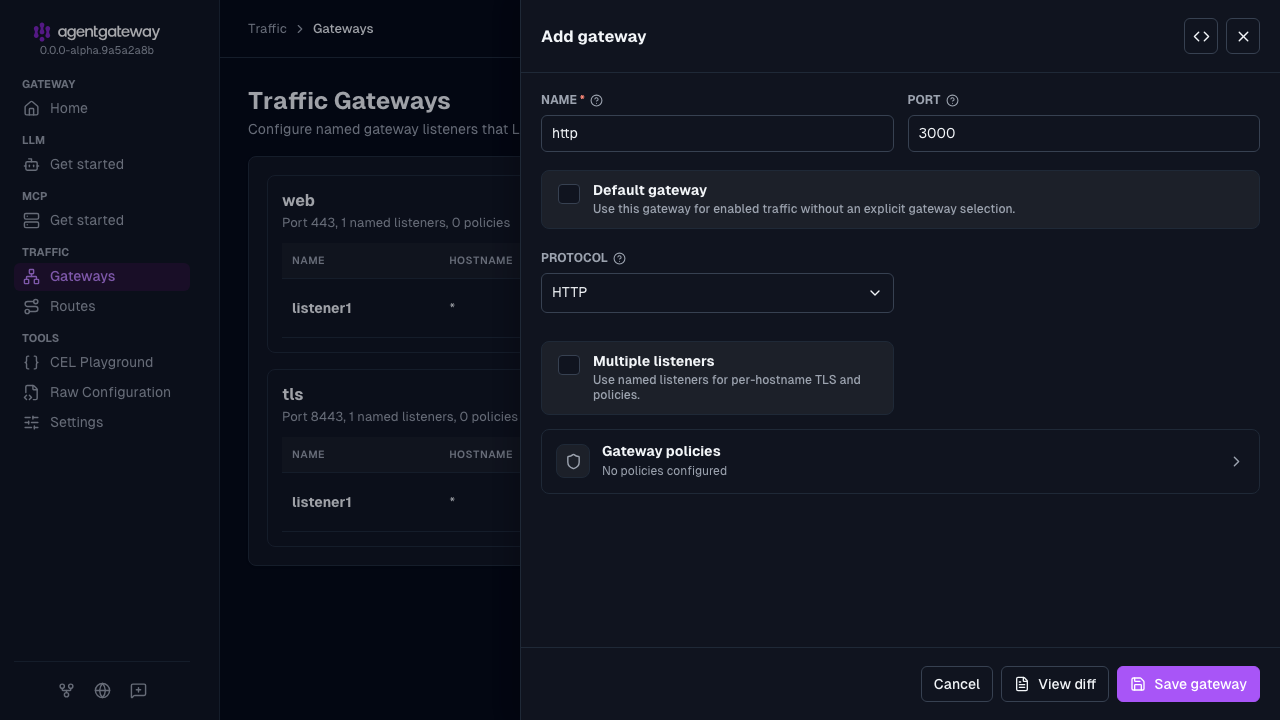

To add a gateway with an HTTP listener in the UI, follow these steps. The steps create the same http gateway as the Config file tab.

Open Traffic > Gateways, and click Add gateway.
Enter http for the Name and 3000 for the Port.
Keep HTTP as the Protocol.
Click Save gateway.

Because HTTP is the default protocol, the UI leaves the protocol field out of the gateway entry.

Whether the UI can save depends on your storage mode. For more information, see Save changes from the UI.

HTTPS Listeners

Serving HTTPSHTTPS (HTTP Secure)HTTP over TLS/SSL, providing encrypted communication. Agentgateway supports HTTPS listeners with TLS certificate configuration. traffic requires TLS certificates and setting protocol: HTTPS on the gateway. When you set tls, the protocol defaults to HTTPS, so you can also omit the protocol field.

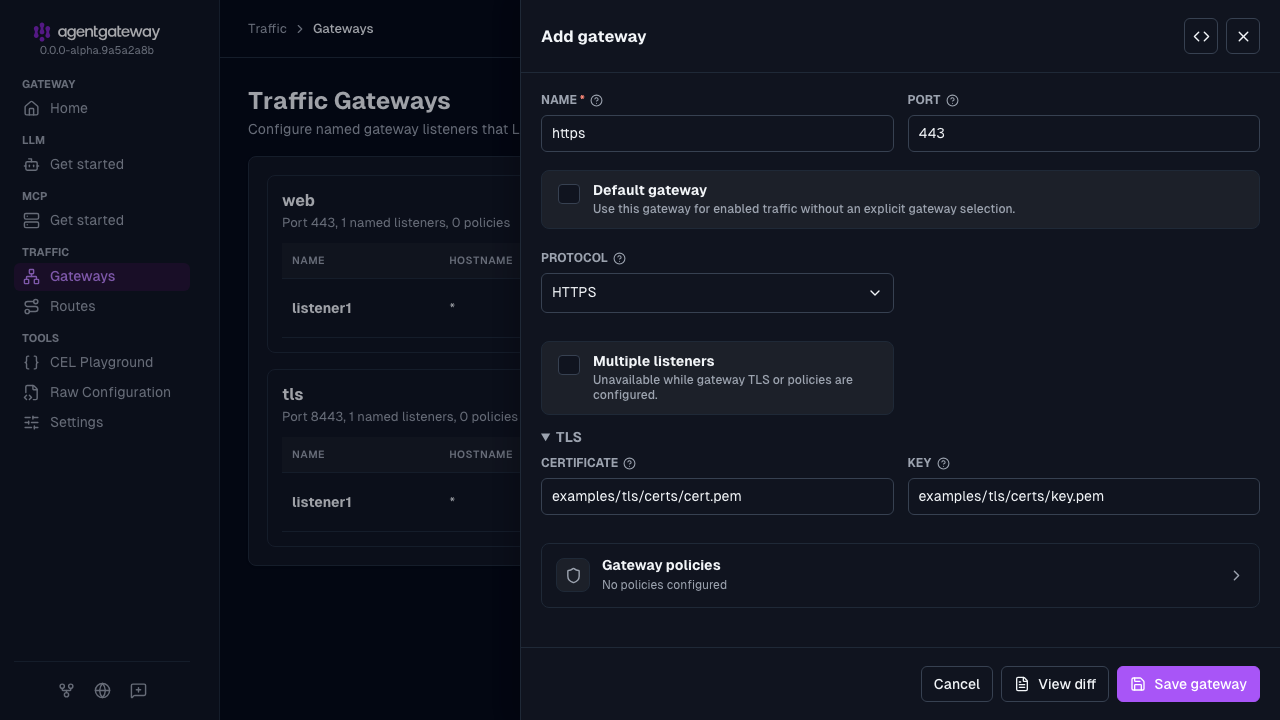

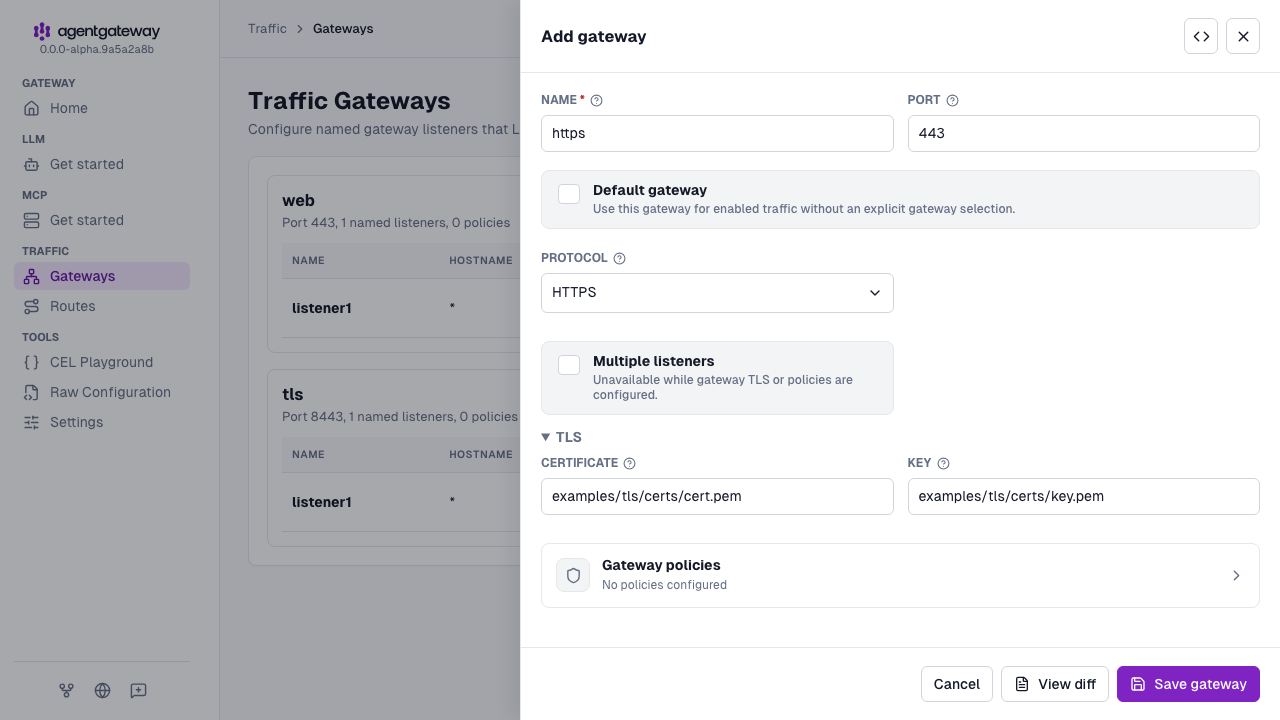

The following steps create the same https gateway as the Config file tab.

Open Traffic > Gateways, and click Add gateway.
Enter https for the Name and 443 for the Port.
Select HTTPS as the Protocol.
Expand the TLS section, and enter the paths to your files.
- Certificate: examples/tls/certs/cert.pem
- Key: examples/tls/certs/key.pem
Click Save gateway.

The certificate and key files must exist when you save. Relative paths resolve from the directory where agentgateway runs. The UI leaves out protocol: HTTPS, because setting tls implies it.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
gateways:
  https:
    port: 443
    protocol: HTTPS
    tls:
      cert: examples/tls/certs/cert.pem
      key: examples/tls/certs/key.pem
routes: []

To generate a self-signed certificate for local testing, you can use openssl. Self-signed certificates trigger security warnings in browsers and clients, so use a certificate from a trusted certificate authority, such as Let’s Encrypt, in production.

openssl req -x509 -newkey rsa:4096 -keyout key.pem -out cert.pem -days 365 -nodes -subj "/CN=localhost"

By default, a listener will match any traffic on the port. To serve multiple hostnames on one port, add a named listener for each one under the gateway’s listeners field and set the hostname field. Traffic is then routed based on the hostname. The most exact match will be used, as well as the corresponding TLS certificates.

Open Traffic > Gateways, and click Add gateway.
Enter a Name and a Port, such as web and 443.
Select Multiple listeners, and click Save gateway. The gateway gets one listener named listener1.
Note
Select Multiple listeners before you change other fields. The option is unavailable after you select HTTPS or TLS, or add a policy to the gateway.

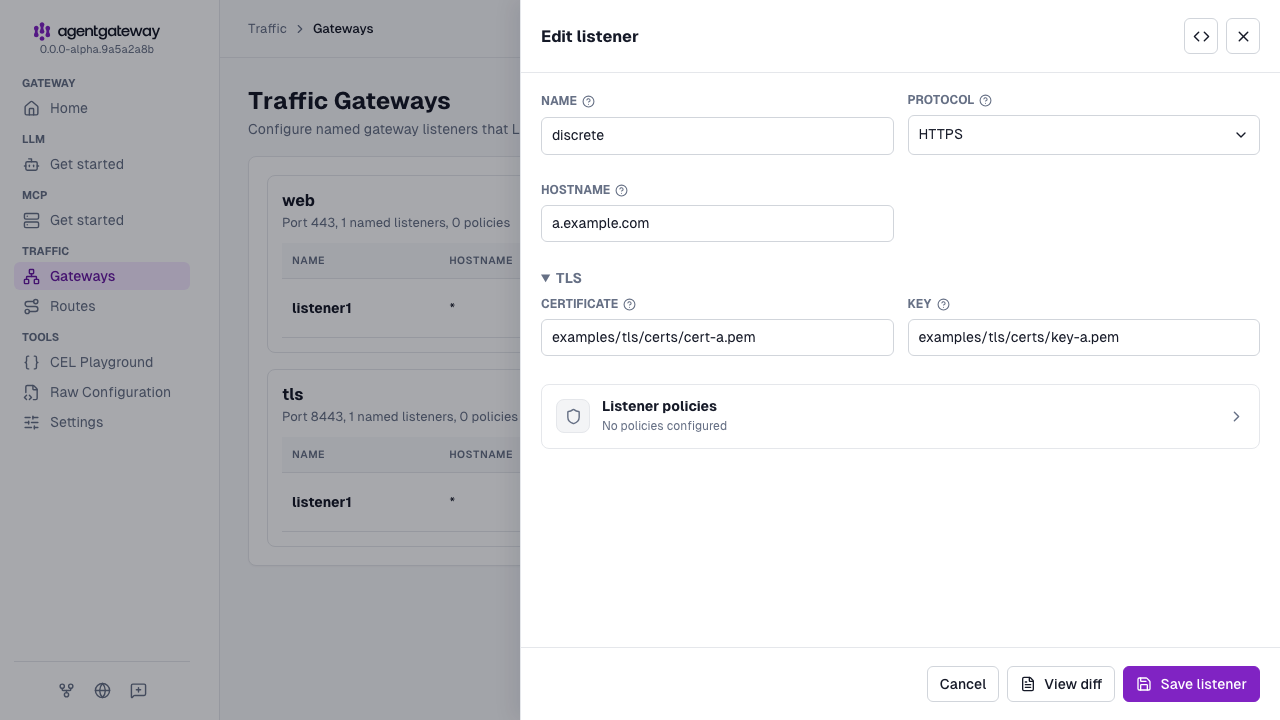

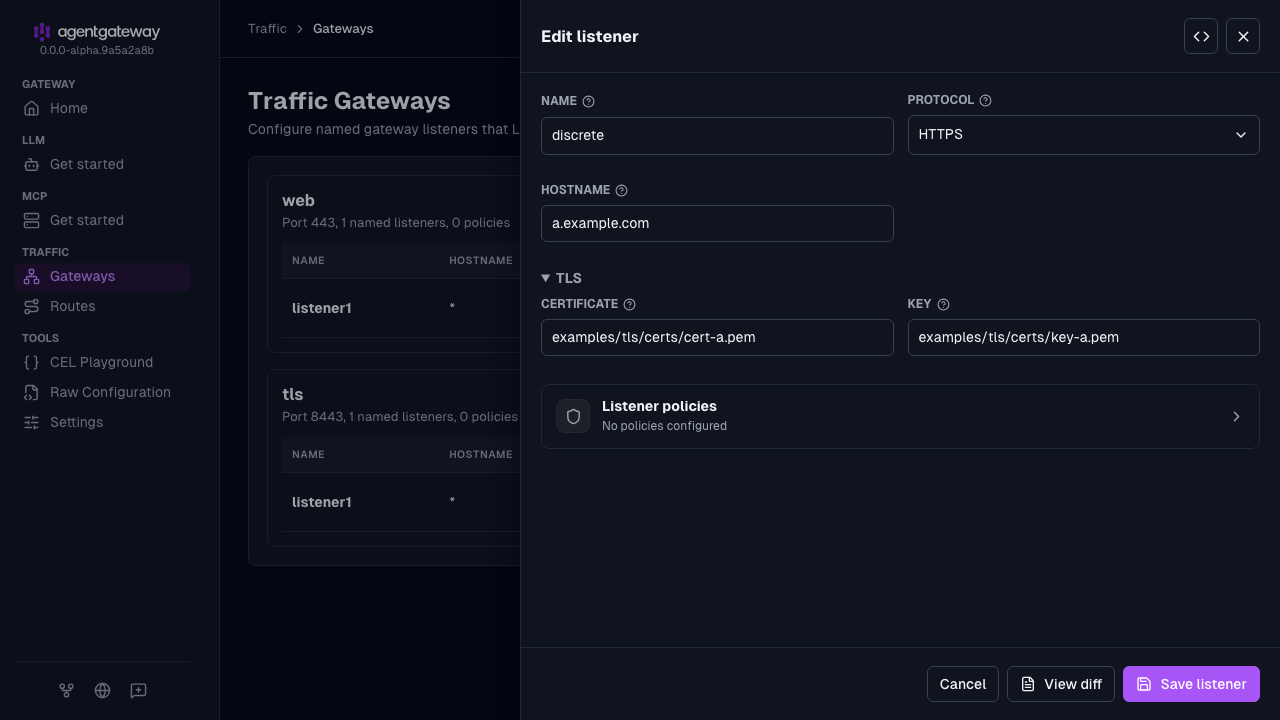

In the listener table of the web gateway, click the Edit listener icon for listener1, and fill out the Edit listener drawer.
1. Enter discrete for the Name.
2. Select HTTPS as the Protocol.
3. Enter a.example.com for the Hostname.
4. Expand the TLS section. Enter examples/tls/certs/cert-a.pem for the Certificate and examples/tls/certs/key-a.pem for the Key.
Click Save listener.
In the header of the web gateway, click the Add listener icon. In the Add listener drawer, create the wildcard listener in the same way as the discrete listener.
1. Enter wildcard for the Name.
2. Select HTTPS as the Protocol.
3. Enter *.example.com for the Hostname.
4. Expand the TLS section. Enter examples/tls/certs/cert-wildcard.pem for the Certificate and examples/tls/certs/key-wildcard.pem for the Key.
5. Click Save listener.

The UI leaves out protocol: HTTPS on each listener, because setting tls implies it.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
gateways:
  web:
    port: 443
    listeners:
    - name: discrete
      protocol: HTTPS
      hostname: a.example.com
      tls:
        cert: examples/tls/certs/cert-a.pem
        key: examples/tls/certs/key-a.pem
    - name: wildcard
      protocol: HTTPS
      hostname: "*.example.com"
      tls:
        cert: examples/tls/certs/cert-wildcard.pem
        key: examples/tls/certs/key-wildcard.pem
routes: []

To attach a route to one of these listeners instead of the whole gateway, reference it as web/discrete or web/wildcard in the route’s gateways field.

Redirect HTTP to HTTPS

Listeners under one gateway share a port, so they cannot mix encrypted and plaintext traffic. To serve both HTTP and HTTPS, define a separate gateway for each, and attach a route with a requestRedirect policy to the HTTP gateway. The following example listens for plaintext HTTP on port 80 and redirects it to HTTPS, while serving encrypted traffic on port 443.

gateways:
  http:
    port: 80
    protocol: HTTP
  https:
    port: 443
    protocol: HTTPS
    tls:
      cert: ./certs/cert.pem
      key: ./certs/key.pem
routes:
- name: redirect
  gateways: [http]  # Redirects plaintext traffic to the https gateway
  policies:
    requestRedirect:
      scheme: https

TCP Listeners

TCP listeners can be configured by setting protocol: TCP on the gateway. TCP listeners are useful when serving traffic that is not HTTP based.

Note

A large portion of agentgateway’s functionality is specific to HTTP traffic, and not available for TCP traffic.

Open Traffic > Gateways, and click Add gateway.
Enter a Name and a Port, such as tcp and 9000.
Select TCP as the Protocol.
Click Save gateway.

Additionally, note the use of tcpRoutes instead of routes (which are HTTP routes) in the example.

TLS Listeners

For serving TLS traffic, the protocol: TLS can be used.

Note

TLS encrypted HTTP traffic should use HTTPS listeners.

TLS listeners can either terminate or passthrough TLS traffic. While both a TCP and TLS passthrough listener do not terminate TLS, the latter enables the use of routing based on the hostname (utilizing SNI).

A TLS listener without a certificate passes TLS through. A TLS listener with a certificate and key terminates TLS.

Open Traffic > Gateways, and click Add gateway.
Enter a Name and a Port, such as tls and 8443.
Select Multiple listeners, and click Save gateway. The gateway gets one listener named listener1.
In the listener table of the tls gateway, click the Edit listener icon for listener1, and add the passthrough listener.
1. Enter passthrough for the Name.
2. Select TLS as the Protocol.
3. Enter passthrough.example.com for the Hostname.
4. Leave the TLS section empty.
Click Save listener.

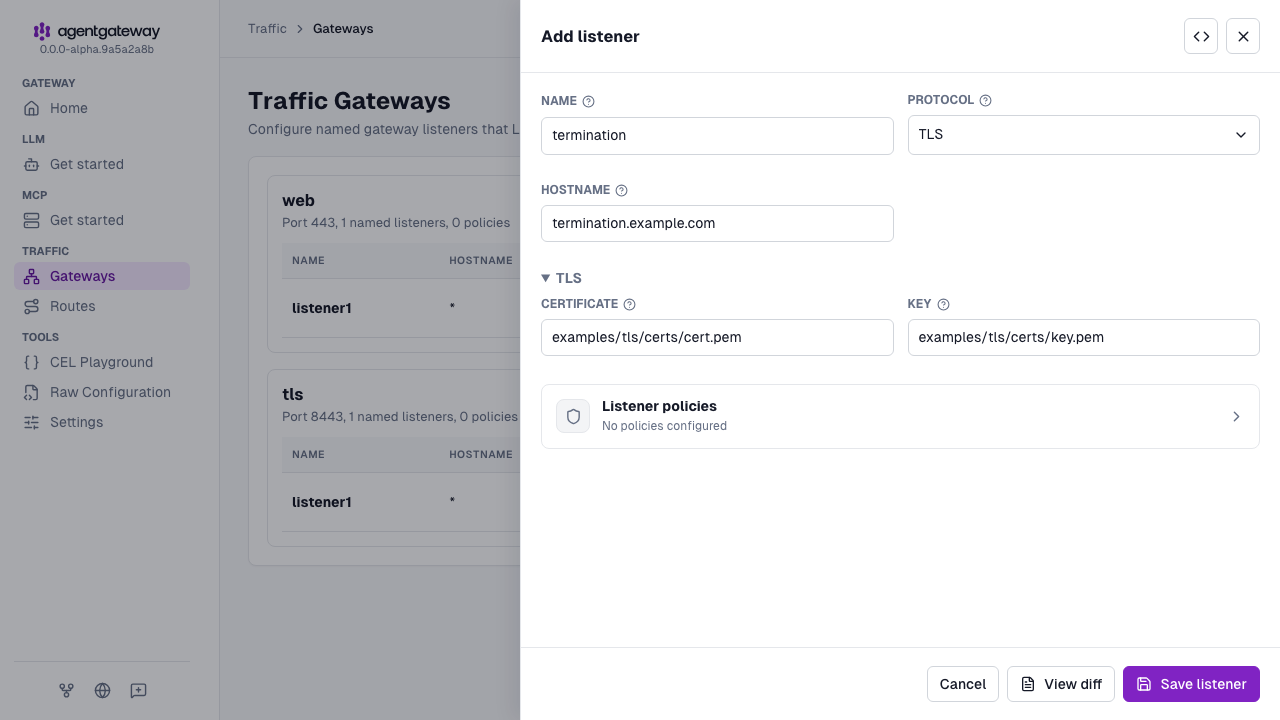

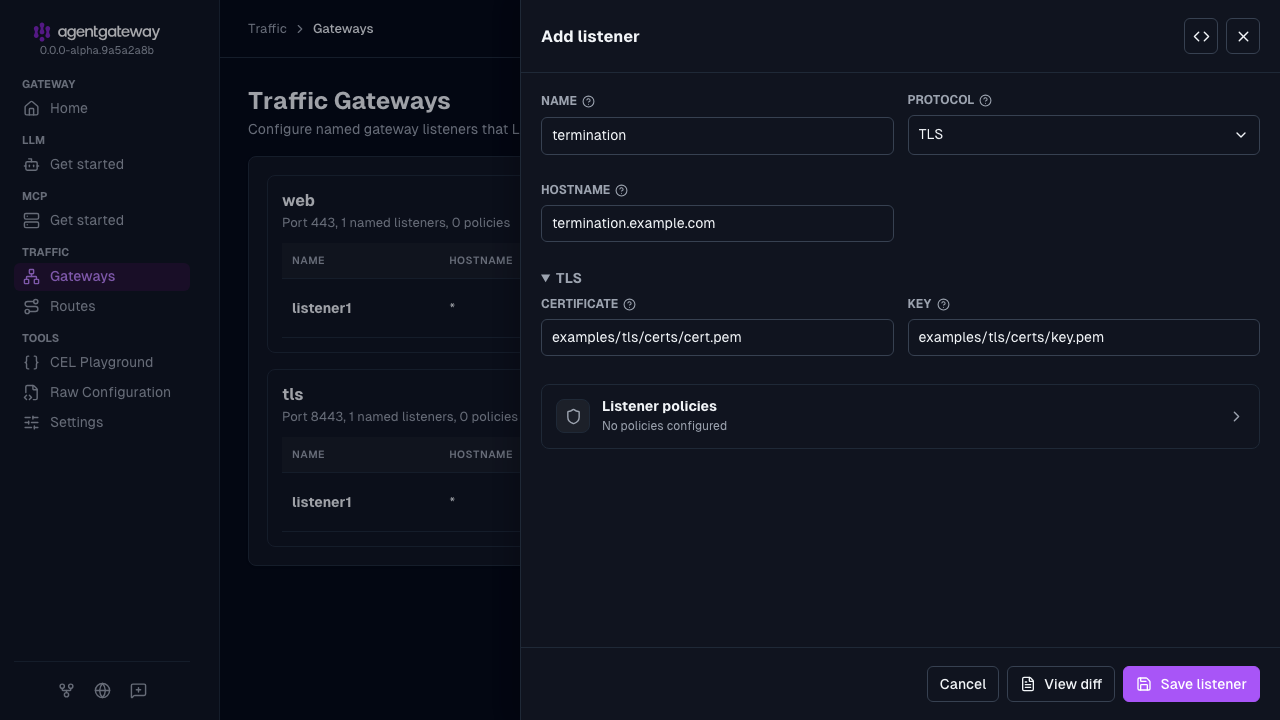

In the header of the tls gateway, click the Add listener icon, and add the termination listener.
1. Enter termination for the Name.
2. Select TLS as the Protocol.
3. Enter termination.example.com for the Hostname.
4. Expand the TLS section. Enter examples/tls/certs/cert.pem for the Certificate and examples/tls/certs/key.pem for the Key.
Click Save listener.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
gateways:
  tls:
    port: 8443
    listeners:
    - name: passthrough
      hostname: passthrough.example.com
      protocol: TLS
    - name: termination
      hostname: termination.example.com
      protocol: TLS
      tls:
        cert: examples/tls/certs/cert.pem
        key: examples/tls/certs/key.pem
tcpRoutes: []
